Things to Download

Before Starting, Remove your Current Launch.ini.โ€‹ If you don’t you may be stuck on the Xbox Logo after Boot.

(step 1)

  • Extract the .RAR for Nand Flasher.
  • Make sure your USB Drive is FAT32.
  • Place the Simple 360 Nand Flasher, on the root of the USB.

(step 2)

  • Go to XeX Menu, and load the Default.xex for Nand Flasher.

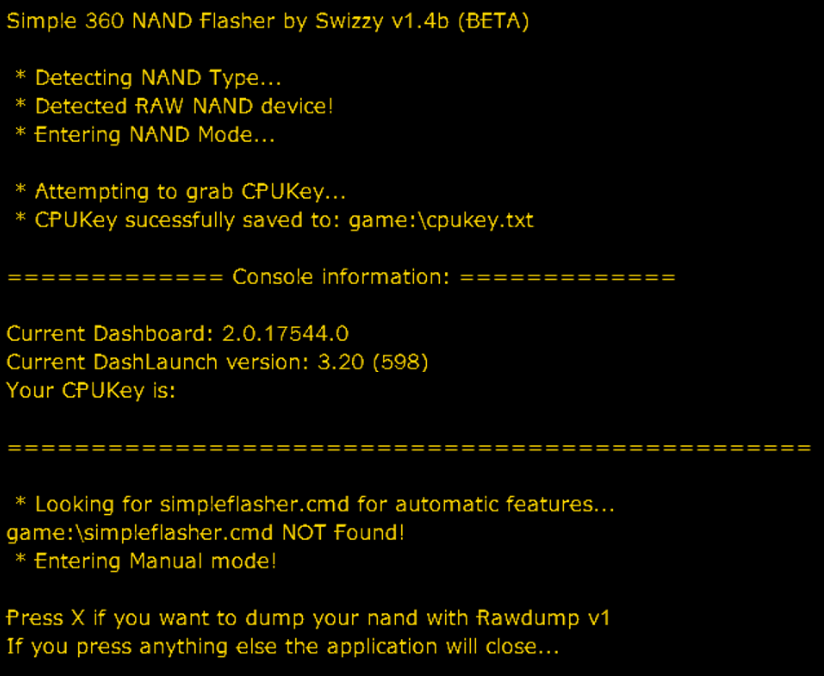

You’ll be presented with this screen
  • Hit X to Dump the Entire Nand.

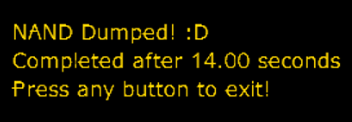

When it finishes, you’ll be presented with this
  • Hit any button on your controller, and when you’re back at the Dash, take out the USB Drive.

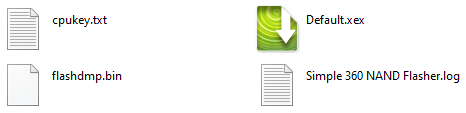

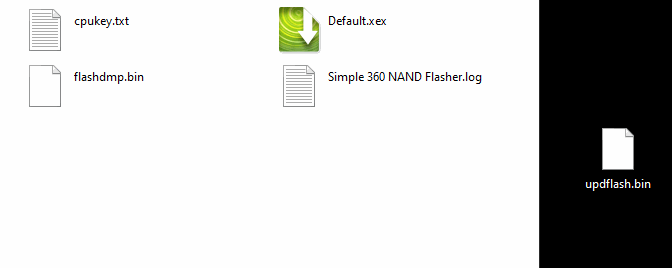

You’ll see 4 Files now in the Nand Flasher Folder

Backup the flashdmp.bin in case you need to flash back!

  • Download and Extract XeBuild 17544.

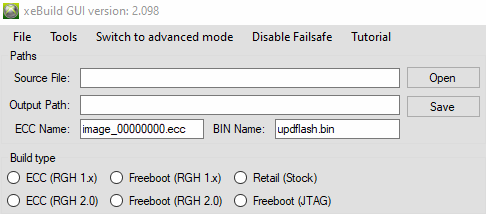

  • Open the file named XeBuild GUI 2.0.
  • On the top of XeBuild, to the right of Source File – Hit Open and select the file “flashdmp.bin”.

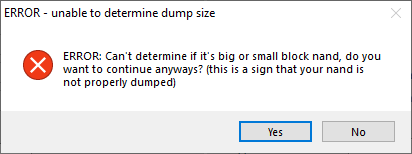

  • If you have a 4GB Corona (48mb Nand) it’ll give you this error
Hit Yes.
  • A little bit under that same spot, you’ll see Keys.
  • Next to the text box of CPUKey, hit the button “Get CPUKey from Keys.txt”.
  • Select the file “cpukey.txt” that Simple 360 Nand Flasher made

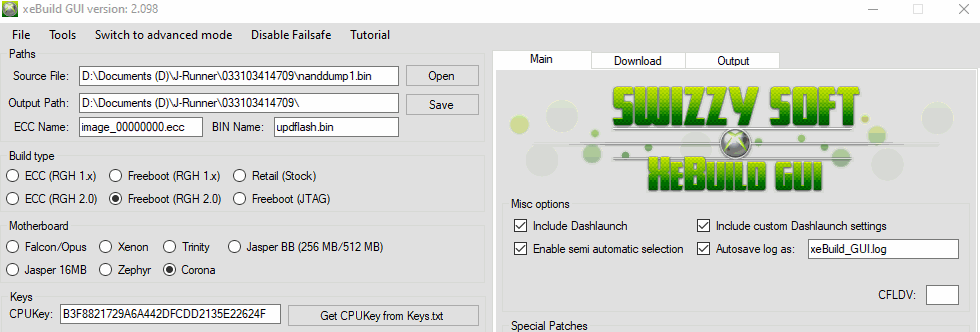

  • Double Check the Build Type!!
  • If you have a Slim Trinity or Corona, it’ll be Freeboot (RGH 2.0).
  • If you have a Phat, you need to know whether it’s RGH 1 or 2.
  • If you’re unsure, Dashlaunch will tell you in the bottom right.
  • Always select Freeboot, not ECC.

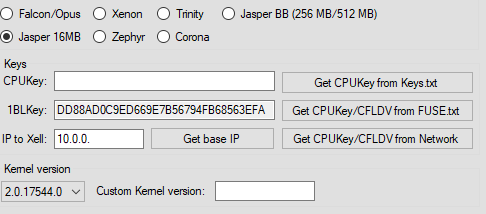

  • The last thing needed to do, is to select the 17559 Kernel.
  • It should be auto selected, but if it’s not:

Please make sure all boxes on the bottom are Checked:

  • If you’re on a 4GB Corona, this step is very important.
  • You NEED to enable ‘Open Parameter/Argument Editor‘:
  • Once you have completed those things, on the bottom of XeBuild hit the button Labeled:
  • Generate hacked image”.
  • If you get an error saying it cannot find files, hit Yes.
  • After it 100% Downloads, hit Generate Hacked image again.

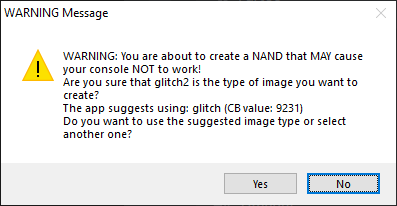

  • If you get an error message that says this:
  • Then double check your build type again.
  • If you are 100% positive that you selected the correct one, then hit No.
  • Then it’ll bring up another Popup asking if you’re sure you wanna use it, hit Yes.
  • If you have a 4GB Corona, you’ll be presented with the same error you had earlier.

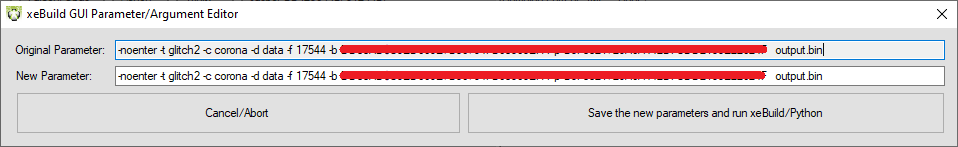

  • The only difference is, you’ll get a Popup that looks like this:

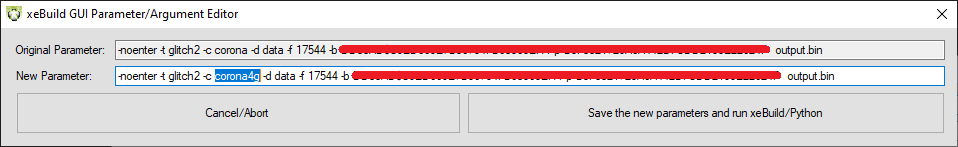

  • All you’re going to do, is add 4g to the end of Corona like this:
  • Then, just hit Save the New Parameter.

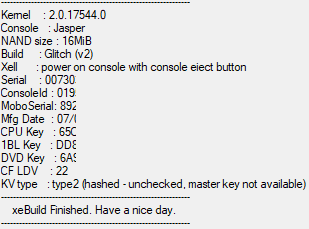

  • In the Right window of XeBuild, if all is successful you’ll see a Log that looks like this:
  • Go to the Output path, where XeBuild saved the file, and you’ll see the file “updflash.bin“.
  • Drag that updflash.bin into the Simple 360 NAND Flasher folder on your USB.
  • Once moved, take the USB, and put it into the Console.
  • Go to Xex Menu and start the Default.xex for Simple 360 NAND Flasher.
  • Once it is loaded, hit A to Write Your Nand.
  • Then hit Start to confirm the Write to your Nand.
  • When it’s completed, you’ll see:
  • Rebooting in 5….4….3….2….1…. and then the console will automatically reboot.
  • When the console reboots, if you go to Settings and Console Info, you’ll see you’re officially updated, and on 17559.
  • Congratulations on Successfully updating your console.

RGH\JTAG TOOLS DOWNLOAD

ย

  • Xbox 360 Neighborhood
  • File Transfer Protocol for your RGH/JTAG Console, use this tool on PC to transfer files with ease!

ย

  • XeXMenu 1.2ย (included w/all Pre-Built systems)
  • File Transfer Protocol for your RGH/JTAG Console, use this tool on your consoleย to transfer files, launch games, and copy files with ease!

ย

ย

  • xeBuild 2.098 (17559)
  • Nand updating tool supporting dash 17559, required to use during Dashboard Updates.

ย

  • XM360ย (included w/all Pre-Built systems)
  • View, manage & store your content such as: XBLA, DLC, Title Updates & Game Saves.โ€‹
